Compounds

Zenith launches its new range of Ready to Print Rollers "Euro-Ultimex"

Types of Compound

Printing & Allied Industries

ZENITH Manufactures Special “EURO-E” Rubber Compound For Printing & Allied Industry

“EURO-E” Rubber Compound For Inking Units

INKING ROLLERS	EURO ‘E’ GRADE	RECOMMENDED HARDNESS
Conventional Inking Rollers	EURO-E/ ULTIMEX	Hardness- 28-32 Shore A
Conventional Inking Rollers	EURO-E/ ULTIMEX	Hardness 30-35 Shore A
Conventional Inking Rollers	EURO-E/ ULTIMEX	Hardness 35-40 Shore A
Conventional Inking Rollers	EURO-E/ ULTIMEX	Hardness 40-45 Shore A
Combi Inking Rollers	EURO-E/ ULTIMEX	Hardness 28-32 Shore A
Combi Inking Rollers	EURO-E/ ULTIMEX	Hardness 30-35 Shore A
Combi Inking Rollers	EURO-E/ ULTIMEX	Hardness 35-40 Shore A
Combi Inking Rollers	EURO-E/ ULTIMEX	Hardness 40-45 Shore A
UV Varnish Rollers	EURO-E/ CRYSTAL	Hardness 28-32 Shore A
UV Varnish Rollers	EURO- E/ CRYSTAL	Hardness 30-35 Shore A
UV Varnish Rollers	EURO-E/ CRYSTAL	Hardness 35-40 Shore A
UV Varnish Rollers	EURO-E/ CRYSTAL	Hardness 40-45 Shore A

“EURO-E” Rubber Compound For Dampening System

INKING ROLLERS	EURO ‘E’ GRADE	RECOMMENDED HARDNESS
For Conventional Dampening	EURO-E/ Excel	Hardness- 20-25 Shore A
For Alcohol Dampening	EURO-E/ Excel	Hardness 25 Shore A

“EURO-E” Rubber Compound For Printing Allied Industries

INKING ROLLERS	EURO ‘E’ GRADE	RECOMMENDED HARDNESS
Flexo Printing	EURO-E (FL)	Hardness- 60-65 Shore A
Label Printing	EURO-E (LB)	Hardness 40-45 Shore A
Tin Printing	EURO-E (T)	Hardness 45-55 Shore A
Roto Gravure Printing	EURO-E (G)	Hardness 70-75 Shore A
Coater Roller	EURO-E (CT)	Hardness 40-45 Shore A
Cold Lamination	EURO-E (CLM)	Hardness 60-65 Shore A
Hot Lamination	EURO-E (HLM)	Hardness 60-65 Shore A
UV Varnish	EURO-E/ CRYSTAL	Hardness 45-50 Shore A
Corrugated Pasting Roller	EURO-E/ (CI)	Hardness 45-50 / 65-70 Shore A
Plate Developer Machine	EURO-E/ (PD)	Hardness 40-45 Shore A

Steel Industry

Compound Used For Steel Industry

APPLICATION	RECOMMENDED RUBBER	RECOMMENDED HARDNESS
Squeeze Roll	Hyplon	65-75 Shore “A”
Carrier Roll	Hardchrome Coated
Deflector Roll	Neoprene	80-85 Shore “A”
Snubber Roll	Neoprene	60-65 Shore “A”
Bridle Roll	Hardchrome Coated
Backup Roll	Hardchrome Coated
Bridle Roll	Neoprene	80-85 Shore “A”
Deflector Roll	Hardchrome Coated
Entry Steering Roll	Hardchrome Coated
Vertical Accumulator Roll	Neoprene	80-85 Shore “A”
Guide Roll	Neoprene	60-65 Shore “A”
Exit Vertical Roll	Neoprene	80-85 Shore “A”
Support Roll	Hyplon	75-80 Shore “A”
Snubber Roll	PU Coating	85-90 Shore “A”
Guideline Roll	Neoprene	80/85 Shore “A”
Guide Wire Roll	Plain (Steel)
Hot Air Roll	Neoprene	60/65 Shore “A”
Pinch Roll	Hardchrome Coated

Paper Industry

Compound Used In Paper Industry

APPLICATION	RECOMMENDED RUBBER	RECOMMENDED HARDNESS
Table Roll	Ebonite	80-85 Shore “D”
Felt Roll	Ebonite	80-85 Shore “D”
Wire-Return Roll	Ebonite	80-85 Shore “D”
Wire-Guide Roll	Ebonite	80-85 Shore “D”
Worm Felt Roll	Ebonite	80-85 Shore “D”
Breast Roll	‘Zenmond’	80-85 Shore “D”
Couch Roll	‘Zenmond’	80-85 Shore “D”
Mould Couch Roll	Natural Rubber	35-40 Shore “A”
Bottom Press	‘Zenmate’	85-90 Shore “A”
Top Press Roll	‘Zenrock’	80-85 Shore “D”
Size Press Roll	‘Zenmate’	80-85 Shore “A”
Baby Press	‘Zenmate’	70-75 Shore “A”
Sheet Cutter Roll	Natural Rubber	80-85 Shore “A”
M. G. Touch Roll	‘Zenmate’	90-95 Shore “A”
Tambour Roll	Plain

Rexene Industry

Compound Used Fox Rexene Industry

APPLICATION	RECOMMENDED RUBBER	RECOMMENDED HARDNESS
Embossing Roll	EPDM	60-65 Shore “A”
Coating Roll	EPDM	55-65 Shore “A”

Textile Industry

Compound Used Fox Textile Industry

APPLICATION	RECOMMENDED RUBBER	RECOMMENDED HARDNESS
Big Hollow Roll	Hyplon	70-75 Shore “A”
Small Hollow Roll	Hyplon	70-75 Shore “A”
Measure Roll	N.B.R.	70-75 Shore “A”
Batch Padding Roll	N.B.R.	70-75 Shore “A”
Small Nip Roll	Hyplon	70-75 Shore “A”
Big Nip Roll	Hyplon	70-75 Shore “A”
Med Squeeze Roll	N.B.R.	70-75 Shore “A”
Stenter Over Feed Roll	N.B.R.	60-65 Shore “A”
Scratcher (Plaiter) Roll	Ebonite	70-75 Shore “A”
Jigger Roll	Ebonite	80-85 Shore “D”

Tannery Industry

Compound Used Fox Tannery Industry

APPLICATION	RECOMMENDED RUBBER	RECOMMENDED HARDNESS
Buffing Roll	N.B.R.	10-12 Shore “A”
Setting Roll	N.B.R.	75-80 Shore “A”
Fleshing Roll	Natural	45-50 Shore “A”

Plywood Industry

Compound Used Fox Plywood Industry

APPLICATION	RECOMMENDED RUBBER	RECOMMENDED HARDNESS
Grooved Roll	‘Zenwood’	80-85 Shore “A”

Rubber Compound Nitrile/PVC

Compounds made from Nitrile rubber and PVC have excellent physical and chemical properties, that is why it has got maximum share in Printing applications properties of Nitrile get enhanced with straight PVC, there by excellent properties can be availed for different applications over nitrile only.

Smooth finish after grinding
Oil resistance (resistance to Inks)
Excellent abrasion resistance
Hardness range 15-95 (Shore A)

Can be Extruded and Calendared with ease. Excellent grinding finish with compression set property special series are also available for different applications or we can supply as per required specifications.

Rubber Compound Nitrile(Straight)

Hardness Range: 10 to 98 (Shore A)
Temp Resistance: 100°C to 120°C (with special compounding)
One of the best in class of polymers as far as oil resistance is required at economical price. Low compression set properties so one can get better sealing properties, Nip properties, better abrasion properties & can be formulated for longer life or as required.
Ozone resistance can be increased with different combinations to suit customer’s demand.

Rubber Compound Hyplon

Compounds made from Hyplon Rubber have wide spectrum of characteristics including

Resistance to oxygen and ozone.
Excellent abrasion resistance.
Temp resistance range 150^°C
Broad range of acid and alkali resistance including chemicals
Excellent tensile and tear strength

Hardness available 30-95 (Shore A) due to its inert backbone, it is resistant to

Hot aqueous alkalis
Acids
Water
Heat and Chemicals
Flame

Rubber Compound EPDM

Compounds made from EPDM rubber have excellent resistance to ozone chemicals (like acid, caustics, steam water etc) due to its versatile structure and saturated backbone.

Resistance to solvents (like Esters and Ketones)
Temp range 180^°C
Hardness range 20-95 (Shore A)

Can be easily Extruded, Calendared thereby easy to fabricate even in harder compounds.
Application: – Printing, Industrial rollers and Automotives.

Rubber Compound Natural Rubber

Hardness Range: 25 to 100 (shore A)
Temp Resistance: 50^°C to 100^°C.
One of the highly consumed polymers in the world. Mainly it is isoprene. Best properties can be fabricated as far as abrasion, resilience fatigue, Modulus, Tensile strength impact resistance and tear strength are required. Flexing properties can be enhanced with suitable fabrication. Industries like Paper, Textile, Steel, Cement and many more require products made out of it. Aromatic oil resistance is less can be easily extruded, calendared and fabricated due to very good tack.

Rubber Compound Silicon Rubber

Hardness Range: 40 to 90 (shore A)
Temp Resistance: 250^°C
Post Curing/Non Post curing: Both available
Mainly used where continuous high temperature is service is required. Industries where low co-efficient of friction along with release properties are required. Can be formulated as per required specifications. Can be easily extruded and calendared so easier for making products on Strip Building Machine.

Rubber Compound Neoprene

Because of its inherent oxygen and ozone resistance and crystallization, it offers best mechanical and fair oil resistance.
Hardness Range : 10 to 95 (Shore A)
Temp Resistance : 40^°C to 150^°C (with special compounding)
Due to mechanical, oil resistance, dent resistance, abrasion resistance ease of extrusion and calendaring makes it versatile for various end uses.

Research & Development

Backed by the intensive R&D, Zenith products have attained international quality standards. The outstanding success of Zenith R&D rests on its unique development of rubber compounds meeting customer’s specific requirements :

Function, chemicals in contact.
Pressure exerted, working temperature and conditions

This is based on tests complying with international norms such as Oscillating Disc rheometer test and tests for tensile strength, abrasion and ageing etc. Zenith R&D department develops roller manufacturing equipment that is operator friendly, needs low maintenance and generates high performance at low production costs. Zenith has fully equipped laboratory with highly trained and experienced rubber technologists and engineers.

Zenith Laboratory is equipped with the following testing equipments:

Mooney Viscometer
Rheometer (ODR or MDR)
Tensile Tester
Abrasion Tester (DIN / Du Pont Abrader)
Resilience Tester (Vertical / Swing Drop Method)
Shore A/IRHD Hardness Tester with Holder
Compression Set Apparatus
Sp. Gravity Balance (0.2 – 2.0 range)
Hot Air Ageing Oven
Muffle Furnace
Electronic pH meter
Pychnometer
Ford Cup

Brookfield Viscometer
Melting Point Apparatus
Flash Point Apparatus
Dumb Bell Cutter – Hydraulic
Dumb Bell Specimen Die
Tear Strength Specimen Die
Thickness Gauge
Electronic Weighing Balance
Lab. Mixing Mill
Lab. Hydraulic Press
Mould for Slab Preparation
Mould for hardness/Compression Set/Abrasion test Button preparation

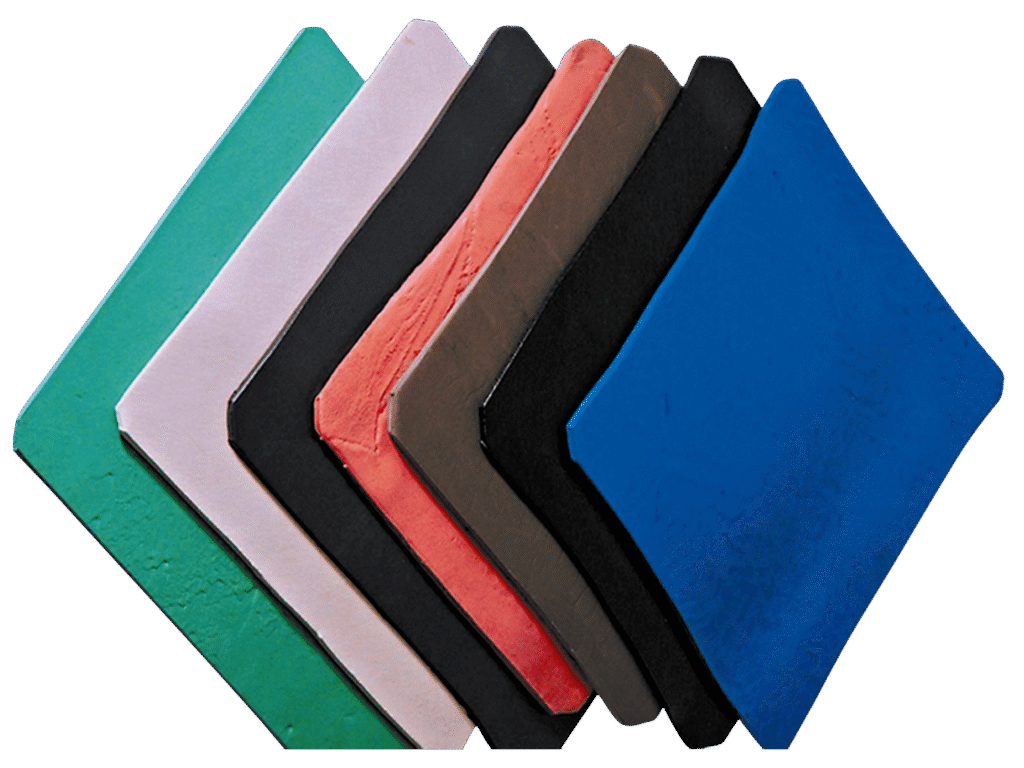

A Compound is mixture of various ingredients with its base polymer to obtain the required physical and chemical properties according to industry specifications.

Zenith develops consistent, high standard rubber compounds to meet stringent requirement for roller manufactures for all industries. Zenith also delivers custom mixed compounds. Zenith only uses top quality raw materials. Our vendors/suppliers are required to furnish us with the material certification on every rubber ingredient. Zenith’s custom and advanced mixing facilities include kneader mixing, open mill mixing, straining and calendering that enable Zenith to offer the highest quality standards in its compounds.

Zenith’s technical facilities include state-of-the-art testing equipment and machines that are regularly maintained and calibrated. This enables Zenith to perform different tests and inspections right from raw materials to final product. These tests are for hardness, tensile strength, tear strength, abrasion resistance, fluid resistance, ozone/UV resistance, resilience and ageing among others.

All tests are carried out according to internationally accepted standards and/or the customer’s requirements by qualified and experienced personnel.

After extensive research, Zenith has developed various compounds for hardness ranging from 12 Shore A to 100 Shore A using a wide range of materials such as: NR, SBR, EPDM, NBR, PVC-NBR, CR, CSM, SILICONE (Q) and PU.

Zenith qualified and experienced staff can develop formulations and colour matching for specific requirements. Our extensive formulae library is constantly enhanced to keep pace with the rapid technological development.
