Machinery

All manufacturing equipments for producing world-class printing and industrial rollers

Machinery

Zenith can supply all manufacturing equipment for producing world-class printing and industrial rollers right from the raw materials to the finished product. Our range of equipment includes : Dispersion Kneader, Mixing Mill, Calendar Machine, Hot and Cold Feed Extruders, Three Roll Builder, Lathe Machine, Boiler, Autoclave, Grinding Machine, Polishing Machine and Balancing Machine.



All these machines are tested extensively for optimum performance before delivery. Zenith has a well earned reputation for developing and manufacturing equipment for roller building that is easy to operate, reliable, cost effective and profitable.

  • Rapid growth in machinery manufacturing due to ever-expanding product line.
  • Operator Friendly design for smooth and easy operation.
  • Easy to learn Formats.
  • Enables inexperienced operators to become proficient in a short time.

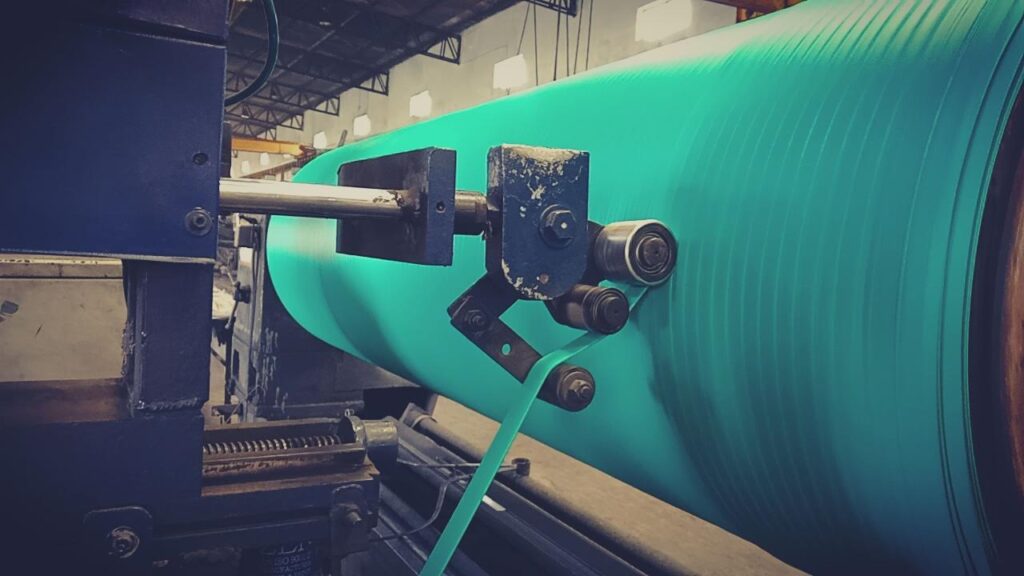

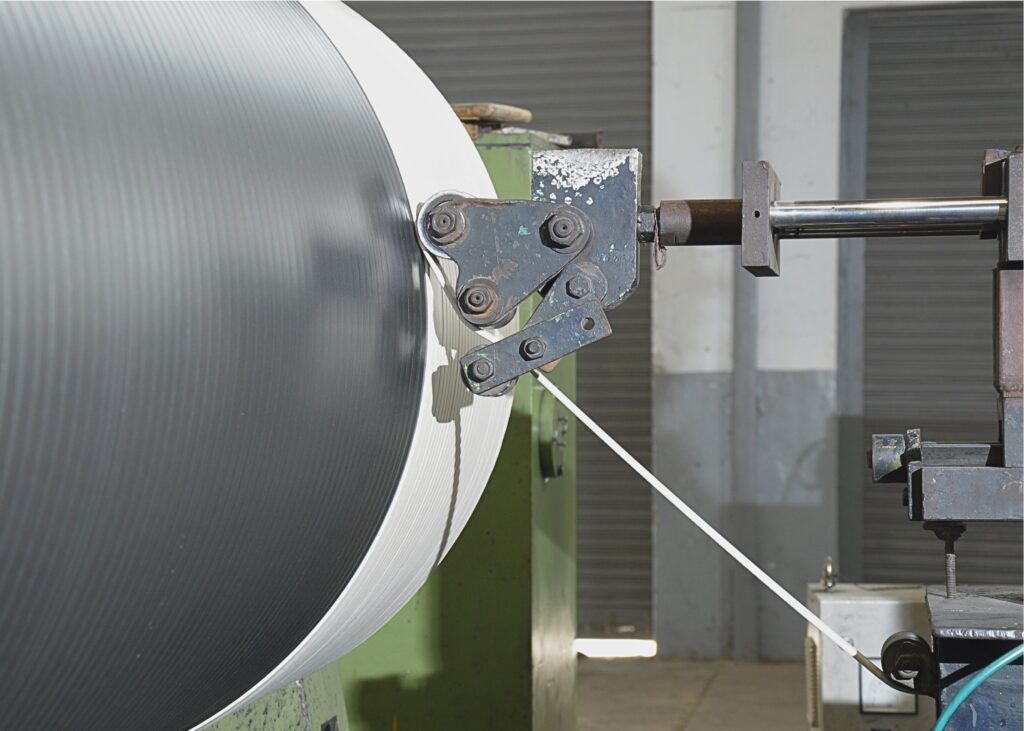

Strip Builder Machine

Strip Builder

ZENITH Strip Builder offers synchronized consistent rubber application for large or small rollers.   Our machines are designed for the most efficient performance.Our Strip Builder is designed with provision of cold feed and hot feed extruders with built-in electrical,pneumatic controls and other application equipment. Roller covering extruder plant complete with movable carriage holding the cylinder to be covered.

Specifications Of Strip Builders Machine

MODEL ZNSB 30
Maximum Roller Length (A.B.C.) 3000 mm
Maximum Roll Diameter 500 mm
Minimum Roll Diameter 40 mm
Maximum Roll Weight 1 Ton
Extruder Size 2.5” (63.5’)mm Screw Diameter (Hot feed)
Chuck (Head Stock) 10” (254mm) 4 Jaw (3 Jaw Optional)
Centre – (Tail Stock) MT-4
Power Requirement 3 Phase 440 Volts 50 Hz A.C.(or as per Client’s requirement)
Control (Power) D.C. Control & Pneumatic
Maximum Power Consumption 26 H.P.
Thickness of Strips 3 mm to 7 mm
Compressor Capacity 1 H.P. 45 ltrs
Electrical panel 25/5/5 amps, D.C. drive
MODEL ZNSB 40
Maximum Roller Length (A.B.C.) 4000 mm
Maximum Roll Diameter 700 mm
Maximum Roll Weight 4 Ton
Extruder Size 2.5” (63.5’)mm Screw Diameter (Hot feed)
Chuck (Head Stock) 18” (457mm) 4 Jaw (3 Jaw Optional)
Centre – (Tail Stock) MT-5
Power Requirement 3 Phase 440 Volts 50 Hz A.C.(or as per Client’s requirement)
Control (Power) D.C. Control & Pneumatic
Maximum Power Consumption 28 H.P.
Thickness of Stripes 3 mm to 7 mm
Compressor Capacity 1 H.P. 45 ltrs
Electrical panel 25/5/5 amps, D.C. drive
Note: Zenith also make above Strip Builder Machine in 5000mm length on Customer’s requirement.
MODEL ZNSB 50
Maximum Roller Length (A.B.C.) 5000 mm
Maximum Roll Diameter 1000 mm
Maximum Roll Weight 6 Ton
Extruder Size 2.5” (63.5’)mm Screw Diameter (Hot feed)
Chuck (Head Stock) 22” (558mm) 4 Jaw (3 Jaw Optional)
Centre – (Tail Stock) MT-5
Power Requirement 3 Phase 440 Volts 50 Hz A.C.(or as per Client’s requirement)
Control (Power) D.C. Control & Pneumatic
Maximum Power Consumption 33 H.P.
Thickness of Stripes 3 mm to 7 mm
Compressor Capacity 1 H.P. 45 ltrs
Electrical panel 25/5/5 amps, D.C. drive
Note: Zenith also make above Strip Builder Machine in 7000mm length on Customer’s requirement.
MODEL ZNSB 70
Maximum Roller Length (A.B.C.) 7000 mm
Maximum Roll Diameter 1500 mm
Maximum Roll Weight 10 Ton
Extruder Size 3” (76.2’)mm Screw Diameter (Hot feed)
Chuck (Head Stock) 22” (558mm) 4 Jaw (3 Jaw Optional)
Centre – (Tail Stock) MT-6
Power Requirement 3 Phase 440 Volts 50 Hz A.C.(or as per Client’s requirement)
Control (Power) D.C. Control & Pneumatic
Maximum Power Consumption 45 H.P.
Thickness of Stripes 3 mm to 7 mm
Compressor Capacity 1 H.P. 45 ltrs
Electrical panel 25/5/5 amps, D.C. drive
Note: Zenith also make above Strip Builder Machine upto 10000 mm lenght on Customer’s demand.
Hydraulic Cylindrical Grinder

Hydraulic Cylindrical Grinding Machine

ZENITH GRINDERS – Are well designed. The base is made of seasoned close grain casting to prevent vibration and distortion to achieve consistency in accuracy.

Specification

Model ZNG – 1000 ZNG – 1250 ZNG – 2000 ZNG – 2500 ZNG – 3000
Admit Between Centre 1000 mm 1250 mm 2000 mm 2500 mm 3000 mm
Centre Height 150 mm 155 mm 250 mm 250 mm 250 mm
Speed Of Work 3 STEP 3 STEP 3 STEP 3 STEP 3 STEP
Head Spindle 35 To 350 mm 35 To 350 mm 35 To 350 mm 35 To 350 mm 35 To 350 mm
Table Speed Minimum 50 mm 50 mm 50 mm 50 mm 50 mm
Maximum 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm
Wheel Head Grinding Wheel Size 16”x5”x11/2” 16”x5”x11/2” 20”x10”x2” 20”x10”x2” 20”x10”x2”
Wheel Speed Two Step 1500-1800 rpm 1500-1800 rpm 1200-1500 rpm 1200-1500 rpm 1200-1500 rpm
Incriment Of Feed Dail .005 mm .005 mm .005 mm .005 mm .005 mm
Swivel Of Wheel Head 45 – 45 Degree 45 – 45 Degree 45 – 45 Degree 45 – 45 Degree 45 – 45 Degree
Rapid Approch Head 100 mm 170 mm 170 mm 170 mm 170 mm
POWER REQUIRED : 415 volt 50 HZ or as per customers requirement STANDARD ATTACHMENTS : A coolant pump fitted on a tank. Diamond Dresser 2 Nos., Oil Can, Dead Center 2 Nos., Tool Kit ADDITIONAL ATTACHMENT EXTRA COST : Internal Grinding Attachment, Balancing Stand, Balancing Mandrel, Three Points Steady Rest, Two points, Radius Truing Device, Spare Wheel Flange, Independent Four Jaws Chuck, Magnetic Coolant Pump, Grinding Gauge.

Silent Features

  • IBASE The base is made of closed grained casting, heavily ribbed for rigidity.
  • GUID WAYS Made of “TURCITE” (Ant frictional Material), ‘V’ and flat guideways are hand scraped to match the corresponding surface of table slide with fine grove for proper lubrication. The slide travels by hydraulic mechanism.
  • WHEEL HEAD The wheel head spindle is made of hardened alloy steel & assembled with high accuracy & long life bearings. Wheel head has a rapid approach for operating conveniently fast.
  • WORK HEAD Work head spindle is made of hardened alloy steel and runs with high accuracy bearings. The drive to work head is built for stationary and live spindle grinding. The work head can be swiveled for angular grinding.
  • TAILSTOCK Spindle is spring loaded. Tailstock spindles are filled with MT-3 to MT-5 for extra rigidly. Tailstock travels smoothly along the length of table right up to the work head. Clamping of tailstock is by bolts. Spindle (Barrel) can be operated hydraulically by foot paddle.
  • COOLENT SYSTEM Coolant system is provided by electrical pump filled tank. Coolant flow can be controlled by cock valve.
  • ELECTRICAL The machine is supplied suitable for 415 20 volts, 50Hz. Can be supplied with optional power supply on customer demand.

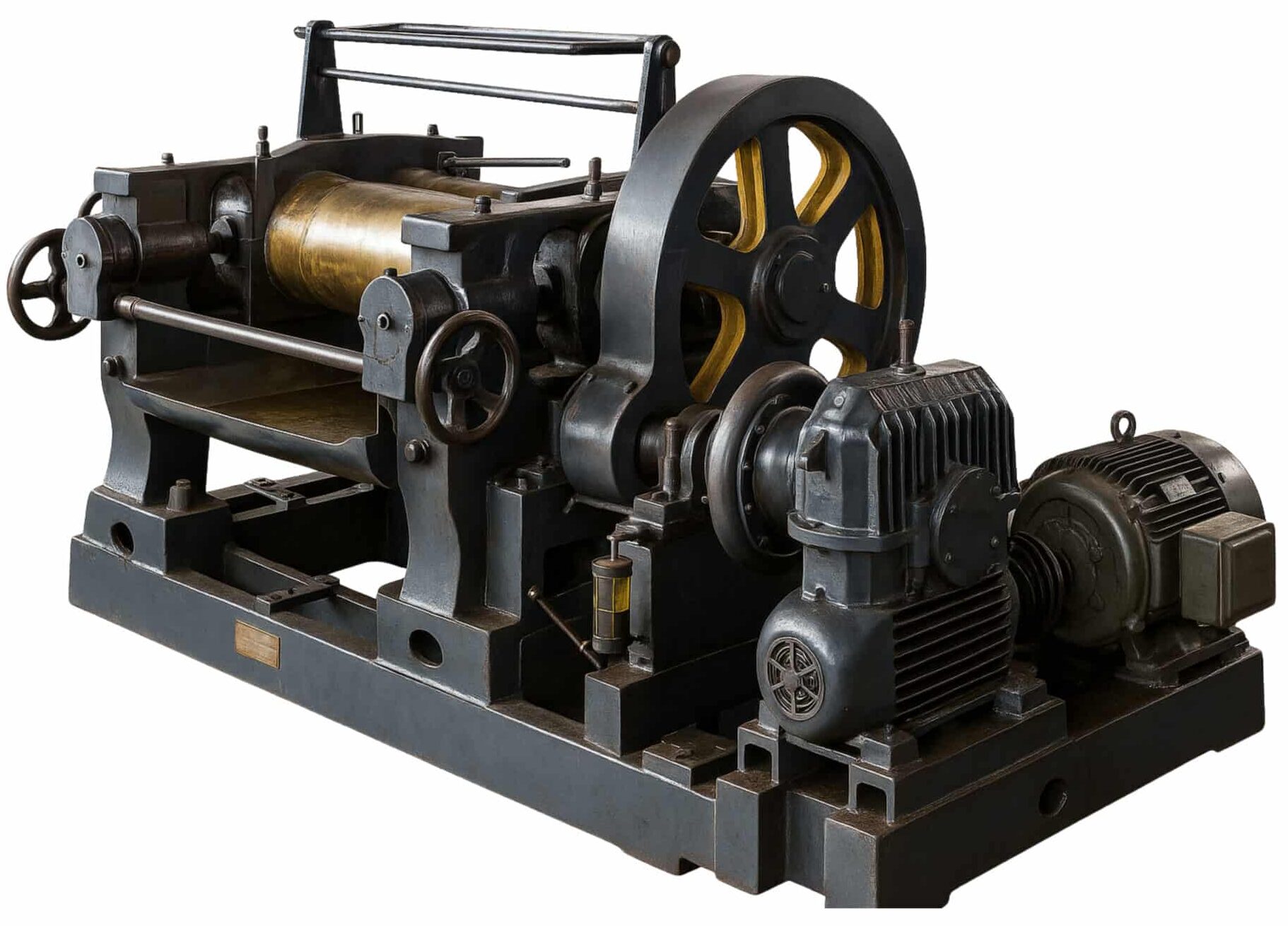

Mixing Mill

Mixing Mill

The basic design and construction of the Zenith Mixing Mill has been subjected to continuous improvements with the advancement of technology. which have permitted them to keep pace with the day-to-day needs of the industry.Available in sizes varying form 6” x 16” to 26” x 84” for compounding, warming, sheeting of various grades and types of rubber and other material.

Specification

TECHNICAL SPECIFICATIONS
Size Of Roll Dia. X Length Capacity Kgs.Batch (App.) R.P.M Of Rolls (App.) Friction Ratio Electric Motor H.P.
6” x 16” 3/6 29 1: 1.15 7.5
8” x 18” 7/10 23 1: 1.15 10
10” x 24” 15/20 21 1: 1.18 20
12” x 30” 20/30 21 1: 1.18 30
14” x 36” 30/45 19 1: 1.18 40
16” x 42” 50/60 17 1: 1.18 60
18” x 48” 75/90 15 1: 1.18 75
22” x 60” 90/110 12 1: 1.18 120
24” x 72” 130/150 12 1: 1.18 175
26” x 84” 160/180 12 1: 1.18 250
Friction ratio and R.P.M can be changed as per customer’s requirement.

Silent Features

  • No. Of Rolls Two
  • Material of Rolls Chilled Cast Iron hollow ground finished, bored through for even heating & cooling, having surface Hardness of 500 – 550 BHN
  • No. Of Guides Four (Two fixed and two movable)
  • Roller Bearing Spherical Roller Bearing
  • Type of Housing Sealed
  • Housing Housing is made from Graded Cast Iron of High quality casting free from holes & casting defects
  • Column Frame Two Nos. Made of Graded Cast Iron as per housing material
  • Nip Adjustment Nip adjustment at two roller ends is done manually using two separate screw attached to the housing through shear plates/fuses (0-10 mm)
  • Friction Gears High precision-machined sets made of forged steel
  • Lubrication System Radial Grease Lubrication Pump
  • Base Frame Uni – Bed design with heavy-duty base frame made up of Carbon Steel sections suitable for anti – vibration mounting or fitment with anchor bolts in concrete floorings
  • Transmissions Through a suitable Helical Gearbox
  • Standard Accessories Panel Board consists of Voltmeter, Ammeter, Phase Indicators, On & Off Switches, Emergency Stop with Auto reversal arrangement I Electromagnetic brake for emergency stop actuated by overhead cradle bar operated by limit switches I Gear covers I Safety Trip Rod\ I Material Collection Tray I Shear Discs/ Fuses I Return Water Funnels I Glass see through tubes I Radial Grease Lubrication Pump.

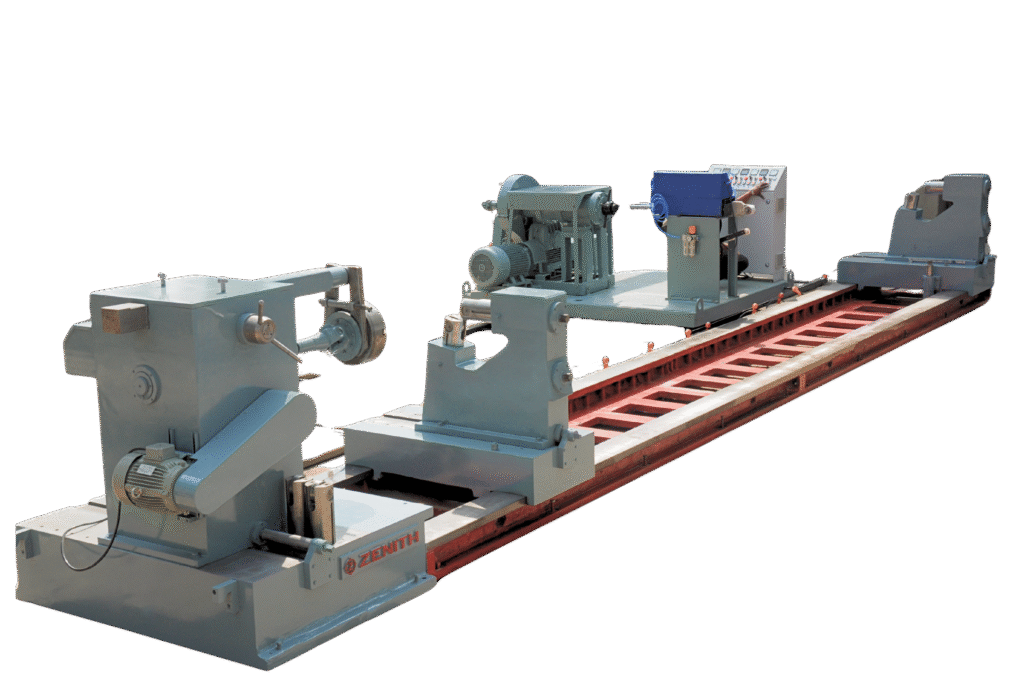

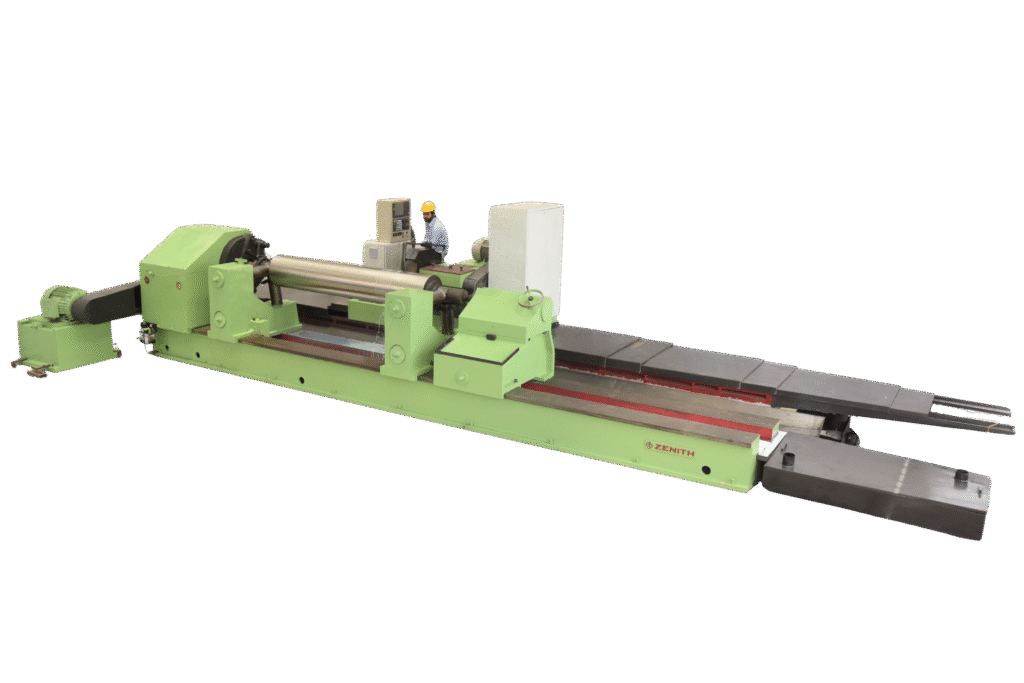

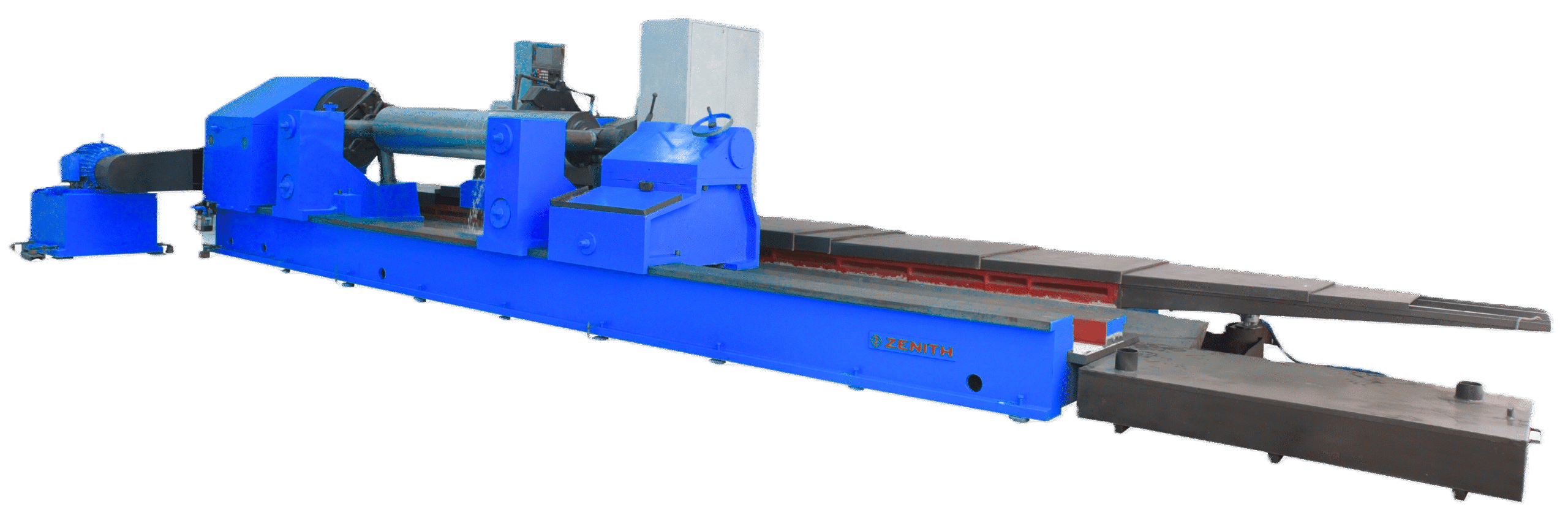

Roll Grinder

Specifications Of Roll Grinder Machine

ROLL GRINDER
MACHINE ZRG-3 ZRG-4 ZRG-5 ZRG-6 ZRG-7 ZRG-9/10
Max .Length b/w centers 3 Mtr. 4 Mtr. 5 Mtr. 6 Mtr. 7 Mtr. 9-10 Mtr.
Minimum Diameter 100 mm 200 mm 200 mm 300 mm 300 mm 300 mm
Maximum Diameter 750 mm 1000 mm 1000 mm 1400 mm 1400 mm 2000 mm
Power reqd.(head+spindle+slide) 10+15+2 27 h.p 15+!5+2 33h.p 20+15+2 37-42 42 47-55 55
wheel (grade) 120 120 120 120 120 120
casting grade 20 20 20 20 20 20
spnidle bushes bronze bronze bronze bronze bronze bronze
wheel head speed ( rpm ) 50 – 750 50 – 750 50 – 750 50 – 750 50 – 750 50 – 750
work head speed (rpm) 5 to 60 5 to 60 5 to 60 5 to 60 5 to 60 5 to 60

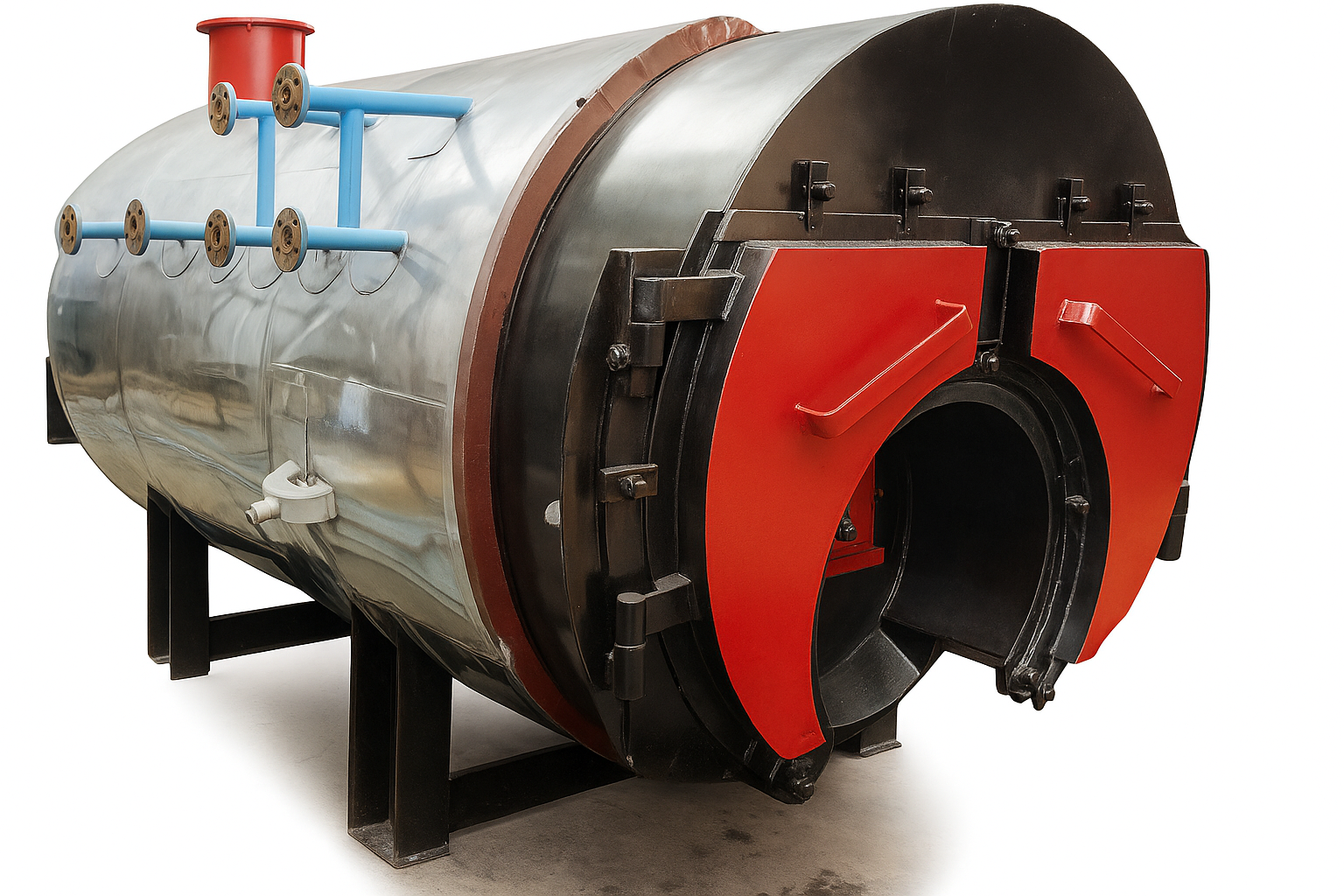

Boiler

Boiler

“ZENITH” steam Boilers are of 2/3 pass smoke tube Vertical Fully / SemiAutomatic design with proven performance. The Boilers are manufactured as per latest Indian Boiler Regulations / International codes as class-l equipment.The boilers are fitted with high combustion efficiency fuel firing equipment resulting in optimum thermal efficiency to achieve economical running cost of the boilers.The range of the product makes the selection to the nearest size of equipment to save on Capital Cost.
TECHNICAL DATA
Boiler Model ZNB – 20 ZNB – 30 ZNB – 50
Steam Output 200 Kg./Hr 300 Kg./Hr 500 Kg./Hr
Heating Surface 5.8 Sq.mtrs. 8.7 Sq.mtrs. 14.5 Sq.mtrs.
Working Pressure 7.0 Kg./Sq.cm. 7.0 Kg./Sq.cm. 10.5 Kg./Sq.cm.
Steam Outlet 25 mm 25 mm 40 mm
Blown Down Cock 25 mm 25 mm 25 mm
Overall Dimensions
Length 1700 mm 1800 mm 2700 mm
Width 1200 mm 1200 mm 1650 mm
Height 1400 mm 1500 mm 2300 mm
Electrical Load
Connected Load 5.0 KW 5.0 KW 6.25 KW
Working Load 3.0 KW 3.0 KW 4.0 KW
Burner Standard as per European Standard for Burner of Boilers
GAS EN – 676
OIL EN – 267
Our Offer for One No. Zenith Horizontal Packaged Oil or Gas Fired Boiler Model Znb – 20 Having Evaporation Capacity of 200 Kg / Hr From and at 100 Deg When Fired with LDO / LPG and Suitable for A working Pressure of 7.0 Kg / Sq. cm (100 Psi ) The boiler will be complete with the following mountings:
  • One No. Main Steam stop valve.
  • Two Nos. feed cum check valves.
  • One No. Double post spring loaded safety valve.
  • Two sets of Gauge glasses with four nos. of cocks complete with two nos. of Glass tubes.

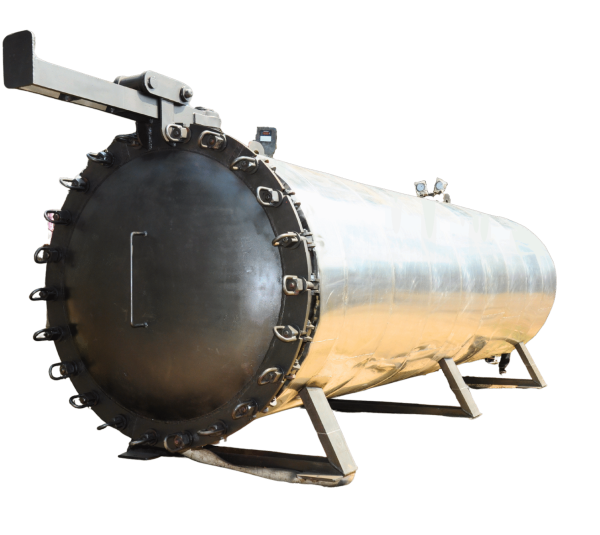

Vulcanzier

Vulcanzier

ZENITH vulcanizer is equipped with Pressure Gauge, safety valves, non returnable valves, temperature gauge etc.

Specifications Of Vulcanzier Machine

Technical Specifications
Type Horizontal
Diameter 1 Mts, 3 Mtr.
Length 4 Mtr, 5 Mtr, 8 Mtr.
Clamping System Manual
Working Pressure 60 KGpsi
Tested Pressure 150 KGpsi
Working temperature 150-160 Celsius

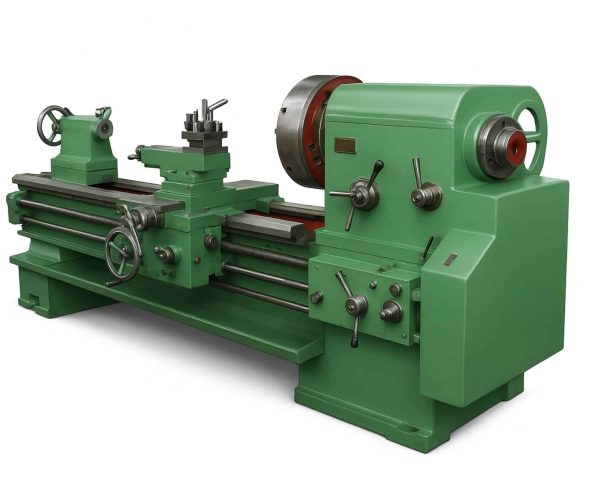

Lathe Machine

Lathe Machine

ZENITH lathe are well suited for all common Turning, Surfacing and screw Cutting with high accuracy. Zenith Lathes are designed for continuous Lights and Heavy jobs. Lathe Machines are made with close grain graded casting, many models & size are available. Zenith Supply mainly two types of precision lathes, CHANGE GEAR TRAIN LATHES AND ALL GEAR HEAD PRECISION LATHES.
CHANGE GEAR TRAIN LATHES TECHNICAL SPECIFICATION
MODEL ZNLT-2 ZNLT-4 ZNLT-6 ZNLT-8
Bed Lenghth 2134mm(7’) 3048 mm (10’) 12’(3658) 14’(4267)
Distance of between center (38”) (74”) 98” 120”
Weigth (approx) 1425 kg 1750 kg 1950 2150
Bed Width 300mm (12”) 300mm(12”) 300mm(12”) 300mm(12”)
Length of Gap 200mm(8’) 200mm(8’) 200mm(8’) 200mm(8’)
In front of face plate bed type 2v and 2 flat 2v and 2 flate 2v and 2 flate 2v and 2 flate
HEAD STOCK
Spindle nose taper bore in MT-6 MT-6 MT-6 MT-6
Spindle Sleeve MT-4 MT-4 MT-4 MT-4
Spindle thread/dia 6TPI/76(3”) 6TPI/76(3”) 6 TPI/76(3”) 6 TPI/76(3”)
Spindle Bore 52mm (21/8”) 52mm (21/8”) 52mm (21/8”) 52mm (21/8”)
CAPACITIES
Height of center 254mm(10”) 254mm(10”) 254mm(10”) 254mm(10”)
Swing over bed 495mm(19,1/2”) 495mm (19,1/2”) 495mm(19,1/2”) 495mm(19,1/2”)
Swing over cross slide 380mm(15”) 380mm(15”) 380mm(15”) 380mm(15”)
Swing gap 790mm(31”) 790mm(31”) 790mm(31”) 790mm(31”)
Movement of cross slide 230mm(5”) 230mm(5”) 230mm(5”) 230mm(5”)
Movement of compound slide 125mm(5”) 125mm(5”) 125mm(5”) 125mm(5”)
SPEED
No. of spindle speed 4+4=8 4+4=8 4+4=8 4+4=8
RPM (minimum/maxi) 25/450 25/450 25/450 25/450
THREADS
Metric Pitch 13 (1mm to 6mm) 13 (1mm to 6mm) 13 (1mm to 6mm) 13 (1mm to 6mm)
Inch Pitch 19 (2TPI to 24 TPI) 19 (2TPI to 24 TPI) 19 (2TPI to 24TPI) 19 (2TPI to 24 TPI)
Lead Screw of dia 1 1/2” x4 TPI 1 1/2” x4 TPI 1 1/2” x4 TPI 1 1/2” x4 TPI
DRIVE
Belts V or Flate V or Flate V or Flate V or Flate
ELECTRICALS
Motor Power & Supply According to Customer According to Customer According to Customer According to Customer
Others : Main Gear are helical, cross side 18”x158,” Spindle pulley & Bush, Surface/Center/Compound Screw nut and all in brass. Standard Equipments:  Chuck plate, Face Plate, Change Gear Set (Inch, /mm) Steady Rest, Follow Rest, Motor Pulley, Tool Post key Center Adapter, dead Center and Machine Belt (Flate or VType.)

Silent Features

  • The Bed is made of close-grained cast iron, having unusual strength and long wearing qualities. It is machined and ground to fine finish and is well braced to withstand vibration free operation even under heavy cutting load.
  • Head Stock The flat seat of headstock over the bed is perfectly matched by precision hand scrapping. The hollow spindle runs in a pair of amply dimensioned split gunmetai adjustable bearing and one Thrust Ball Bearing or Heavy duty Taper Roller Bearings.
  • The Apron is of double wall designed with independent driven motion for feeds and screws cutting. Simultaneous.
  • Engagement of feed and screw cutting is prevented by an interlock mechanism.
  • The Tail Stock is of special and sturdy design. Inverted “V” guides it and flat ways of the bed independent of the saddle guides and has an offsetting drive for taper turning. The body including the base can be clamped to the bed by means of bolt and nut provided.
  • Standard Back Plate for Dog Chuck, Dead Centre (hardened and ground), Centre EQUIPMENT Sleeve Traveling and Fixed Steady Rests. One set of 22-machine cut Change Gear wheels, Oil Tray, Motor drive arrangements and Thread Dial Gauge.
Dispersion Kneader

Dispersion Kneader

Understanding the needs of the Plastics & Rubber processing industry and developing fully indigenous solutions to cater to these needs has always been the prime target of Zenith. When the need was felt for a mixer capable of hard mixing from process compounding view point, Zenith developed Dispersion Mixer. It can be employed in a wide range of material mixing, ranging from low viscosity adhesives to high viscosity rubber. “Zenith” Internal Mixing series is a highly developed range of Dispersion Kneaders for rubber and other polymers with high productivity and consistently good mixing with minimum electricity consumption.
TECHNICAL SPECIFICATIONS
Model Main Motor H.P. Total Capacity Working Capacity Ltrs. Rotor R.P.M Tilt Method Tilt Angle Tilt Motor H.P. Air Comp- ressor H.P. Wt. App.
5 Ltrs. 7.5 8 5 33 : 28 Pneumatic 120 – 2 1 Ton
15 Ltrs. 25 30 15 33 : 28 Screw 110 1.5 2 3 Tons
25 Ltrs. 40 45 25 33 : 28 Screw 110 2 3 5 Tons
35 Ltrs. 60 75 35 33 : 28 Screw 110 3 3 6 Tons
55 Ltrs. 75/100 125 55 33 : 28 Screw 110 3 5 7 Tons
75 Ltrs. 100/125 170 75 33 : 28 Screw 110 5 7.5 8 Tons
110 Ltrs. 125/150 225 110 33 : 28 Screw 110 7.5 10 8 Tons
125 Ltrs. 150/175 265 125 33 : 28 Screw 110 7.5 12.5 13 Tons

Silent Features

  • MORE OUTPUT Kneader output is four times more than mixing mill.
  • ROTOR BLADES The blades are made for special purpose alloy steel material. and edges are made with special extra hard material and hard chromed for durability and to avoid rust formation as the come in contact at the time of mixing.
  • CHAMBER The chamber is specially designed and made by alloy steel casting to withstand maximum strength for better dispersion.
  • EASY DISCHARGE Chamber is mounted on tilting arrangement which can be tilled to 120 Degrees to gives easy and max discharge of rubber compound.
  • THERMO COUPLE Thermocouple is fitted to the mixing chamber to measure Temp. Accurately.
  • COMMON BED The machine has common bed on to which the mixer speed reducer and motor are compactly arranged.
  • LUBRICATION Auto lubrication system is provided for bushes and bearings, which gives more life and better working of machine.
  • COOLING & HEATING The mixing chamber is jacketed for cooling.
  • AIR CYLINDER The Air cylinders are operated through valve fitted in the operating panel.
  • POWER A/C 415 volt 50 HZ 3 Phase. Can be supplied with optional power supply on customer demand.
  • Machines are supplied with all Standard, Equipments like Motor Compressor or Collector Panel.
Extruder Machine

Extruder Machine

“ZENITH” supplies two types of Extruder. Hot Feed & Cold Feed Extruder. Hot feed screw type extruders are heavy-duty machines built to suit individual needs. They are made in many different type and sizes to meet the production requirements for straining extruding, tubing, slab production or contoured shapes. The extruder’s size depends upon the hourly output required and method of feeding with a complete line of equipment is available to meet with all customers need.The Cold feed Extruders have been developed for processing cold rubber compound. Since these machines in addition to extruding profiles also plasticize rubber; they differ from hot feed extruders, they have longer screws; heavier gears boxes and higher drive power. According to present stage of development cold feed extruders can be used for extruding almost all rubber compounds, which are process able on hot feed extruders. Feeding is normally in the form of strips or pellets. Machines with longer screw diameters are often fed directly with wig-wag stored slabs.
TECHNICAL SPECIFICATIONS OF HOT FEED EXTRUDERS
Worm Dia. L/D ratio Worm Speed R.P.M Capacity Kg./ H.R. App. Electric Motor K.W.
1” 1.5 52 5 33 : 28
2” 1:5 52 20 5
3” 1:5 47 30 7.5
4” 1:5 45 140 15
4.5” 1:5 45 170 20
6” 1:5 35 250 25
8” 1:5 25 300 40
TECHNICAL SPECIFICATIONS OF HOT FEED EXTRUDERS
Worm Dia. L/D ratio Worm Speed R.P.M Capacity Kg./ H.R. App. Electric Motor K.W.
2” 1:4.5 38/60 30 7.5/12.5
3” 1:4.5 38/60 50 10/15
4.5” 1:4.5 38/60 225 20/30
6” 1:4.5 38/60 450 30/60
8” 1:4.5 38/60 750 50/75
Cold Feed Extruders
Worm Dia. L/D ratio Worm Speed (R.P.M) Capacity (Kg./ H.R. App.) Electric Motor (K.W.)
40 mm. 1:10 70 40/60 11
60 mm. 1:10 70 90/110 22.5
90 mm. 1:10 60 225/300 45
115 mm 1:10 55 300/350 60
125 mm. 1:10 55 375/500 75
150 mm. 1:10 45 675/900 175
Worm speed of the Extruders can be changed as per customer’s requirement.

Silent Features

  • BED The basic bed is heavily steel fabricated, machined to a single frame on which whole machine with gearbox and motor is fitted.
  • WORM / SLEEVE The worm is mill cut and polished. Sleeve is fine machined and polished and ground hardened by Nitrating process along with cooling arrangement with close clearing to achieve longer life of worm and sleeve and efficient traveling of material (i.e. Rubber).
  • BEARINGS Extruder is jacketed with heavy-duty single double taper roller bearings as per Extruder Loads.
  • DRIVE Worm is driven with belt and reduction gearbox arrangement.
  • HEATING / COOLING Cast iron / Steel fabricated body is jacketed for water-cooling or heating of worm and sleeve.
NOTE : Technological improvements may result in change in specifications.
Three Roll Builder

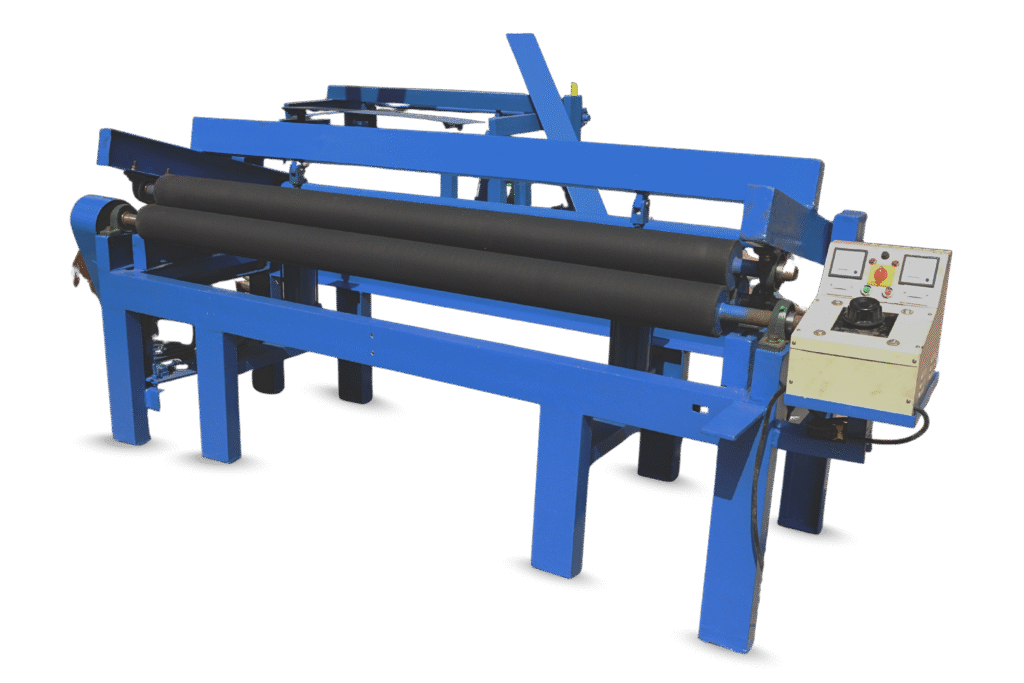

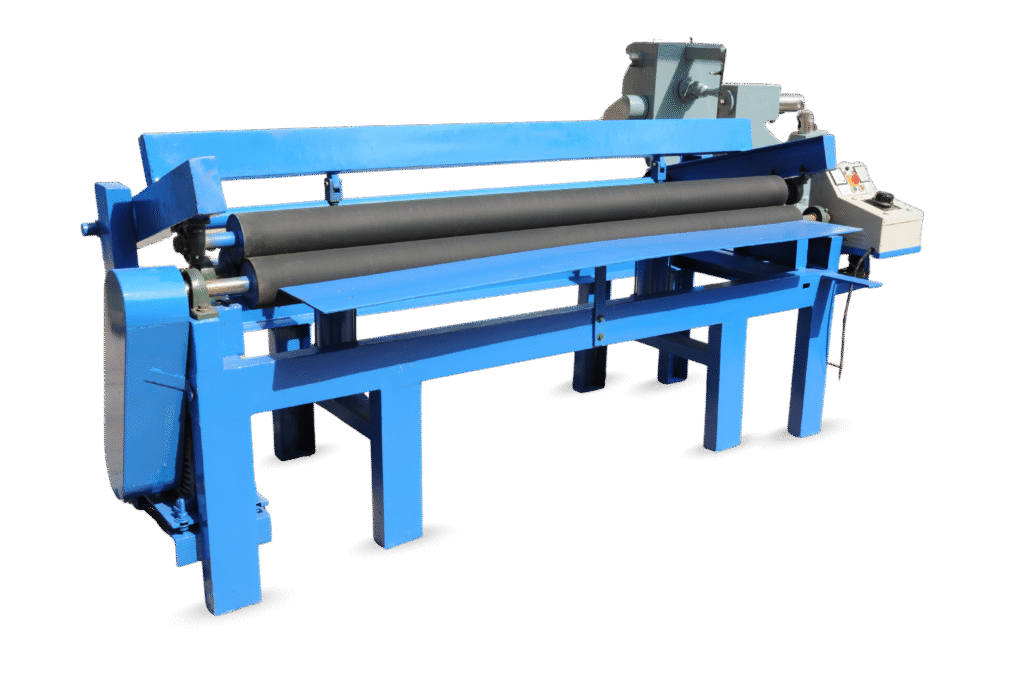

Three Roll Builder Machineries

“ZENITH” three roll builder machines are specially developed for making printing rollers from rubber sheet.

Technical Specifications

Machine Size 2900 x 1180 x 1170 mm
Max Diameter of the Roller 125 mm
Max Lenght of Roller 1500 mm Maximum Weight
Maximum Weight of Roller 100 kg.
Maximum Electric Consumption 2 H.P. 230 Volts
Control D.C. Control & Pneumatic
Electrical Requirement 230 Volts, 50 Hz or As per Client requirements
Drive Motor 1 H.P. D.C. compiled with reduction Gearbox.
Calendering Machine

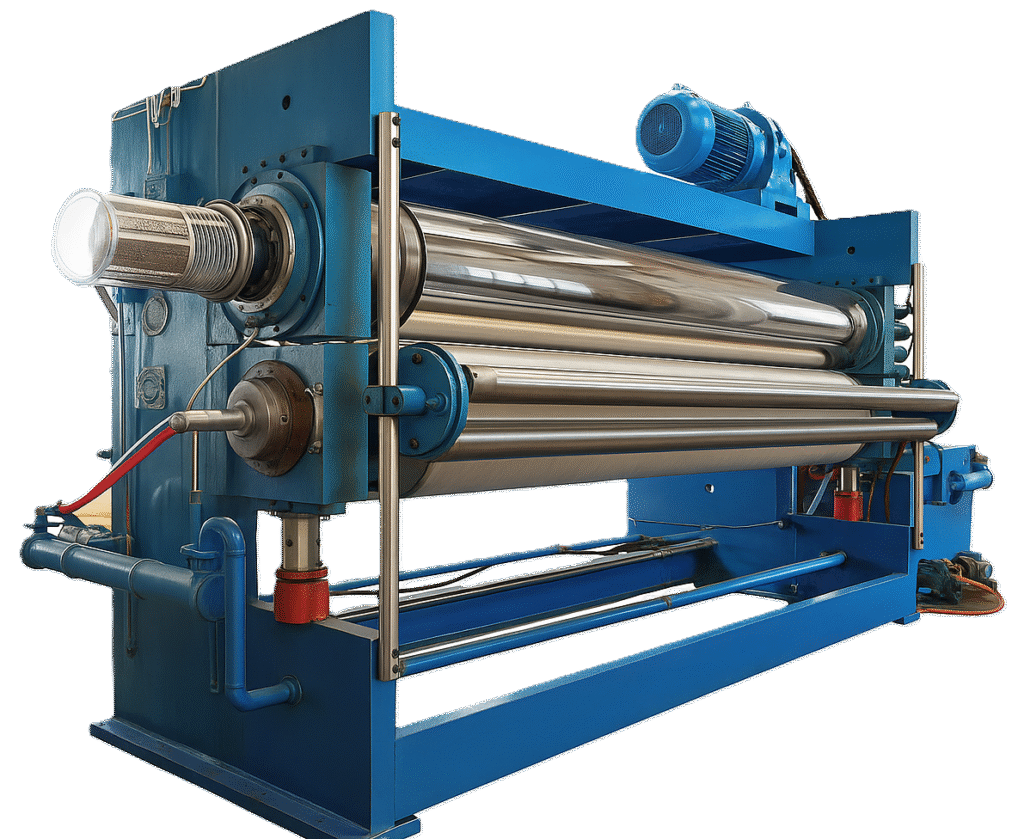

Calendering Machine

Zenith has pioneered many improvements in design of Calender machine, which have resulted in products of improved quality and economy of production. Calenders are made in a wide range of sizes, from small laboratory unit to the big production machines. They are furnished with two, three, four or more rolls and with rolls in different arrangements. Calenders of all sizes are incorporated with the latest features for obtaining uniform coating and sheet thickness, better productivity and processing of rubber.
TECHNICAL SPECIFICATIONS
Machine Size of Roll Dia x Lenght Line Speed Per Minute (App.) in Mtrs. Max. Width of Product Electric Motor H.P.
ZNDK – 1 6” x 18” 7 14” 7.5
ZNDK – 2 8” x 24” 7 20” 10
ZNDK – 3 10” x 30” 7 26” 15
ZNDK – 4 12” x 36” 9 30” 25
ZNDK – 5 14” x 42” 9 36” 40
ZNDK – 6 16” x 48” 9 42” 50
ZNDK – 7 18” x 54” 9 48” 60
ZNDK – 8 22” x 66” 9 60” 100
Thickness of Sheets -1 mm to 10 mm Line speed of the calendars can be changed as per customer’s requirement

Silent Features

  • BED PLATE The basic bed is steel fabricated, machined to a single frame on which whole machine with Gear Box and Motor are fitted. No deep foundations are required.
  • SAND & CAPS (WEB) Well designed for load bearing under extreme working conditions, A Grade casting /steel fabricated.
  • ROLLS OF CALENDER The rolls are made of chilled Alloy cast iron. The rolls are hollow in centre for efficient cooling/ heating.
  • NIP ADJUSTMENT Nip adjustment can be manual or motorized.
  • JOURNAL BOX & BUSHES Journal Boxes are made of graded cast iron and Bushes are of Gunmetal / Phosphorus Bronze.
  • REDUCTION GEAR BOX Worm reduction gearboxes are of appropriate specification ratio.
  • NOTE : Technological improvement may result in change of specification.
Digital Dynamic Balncing

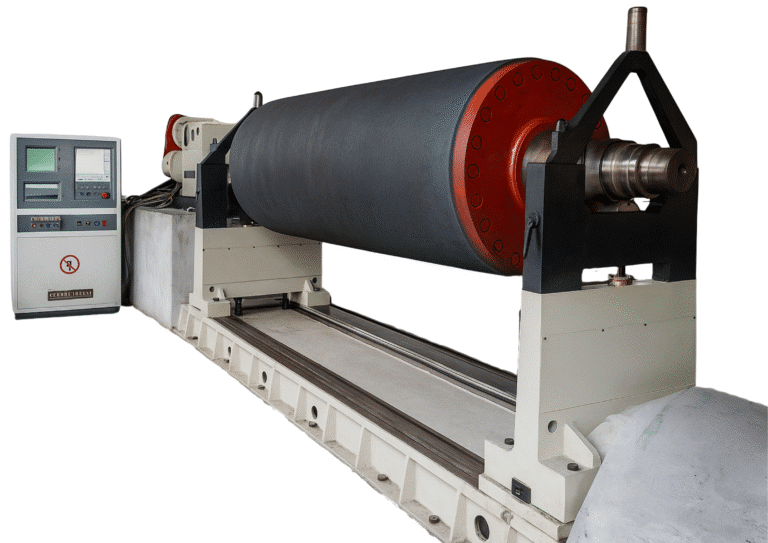

Digital Dynamic Balncing Machine

ZENITH leads in design manufacture and supply of state of the art Digital Microprocessor- Based Dynamic Balancing Machines.
Size Of Roll Dia. X Length Line Speed Per Minute ( App.) in Mtrs.
Machine Configuration One Plane and Two Plane Options, Horizontal end driven.
Minimum Readable Unbalance 0.1 mmg onwards.
Power Control 220 V, 1 Ph, 50 hz, Stablized.
Drive 415V, 3 Ph, 50 hz
Sensors Piezo Electric Force Sensors and Infra Red Phase
Machines Model ZH 5 ZH 10 ZH 30 ZH 65 ZH 11k ZH 3k ZH 5k ZH 10k ZH 16k ZH 30k
Weight Capacity (Kg) 50 100 300 650 1000 3000 5000 10000 16000 30000
Weight Capacity (Kg) 700 1000 1150 1350 1600 2100 2500 3000 3500 4000
Max. Length (mm)
Bed Size-S 900 900 1200 1200 1200 2000 2500 3000 4500 4500
Bed Size- M 1500 1500 1200 2000 2500 3500 5000 6000 6000
Bed Size – L 2500 2500 2500 2500 2500 3500 4500 6500 7500 7500
